Lightweight, responsive, comfortable and efficient: a road frameset in your choice of disc or rim.

🔥 Disc or rim, never compromise 🔥

🚲 Carbon road frameset that turns your strength into speed

🚲 Two versions: rim brake or disc brake

🚲 Simplified maintenance, built for the most enthusiastic riding enjoyment

🚲 Chainstay 407mm (rim) / 410mm (disc), bottom bracket drop 68mm

🚲 Fork rake 53mm, crown-to-axle length 380.5mm

🚲 Five sizes: XS / S / M / L / XL

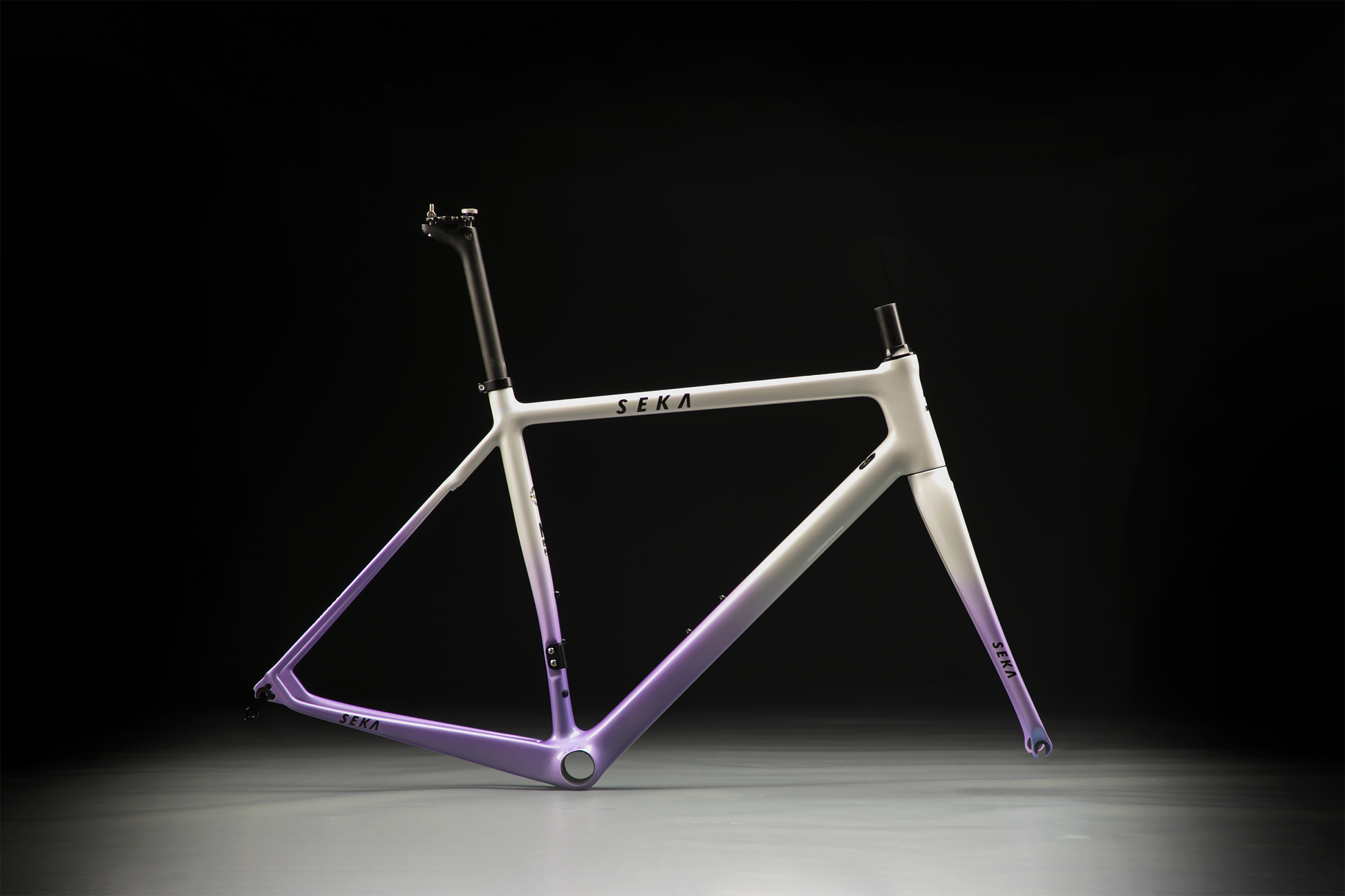

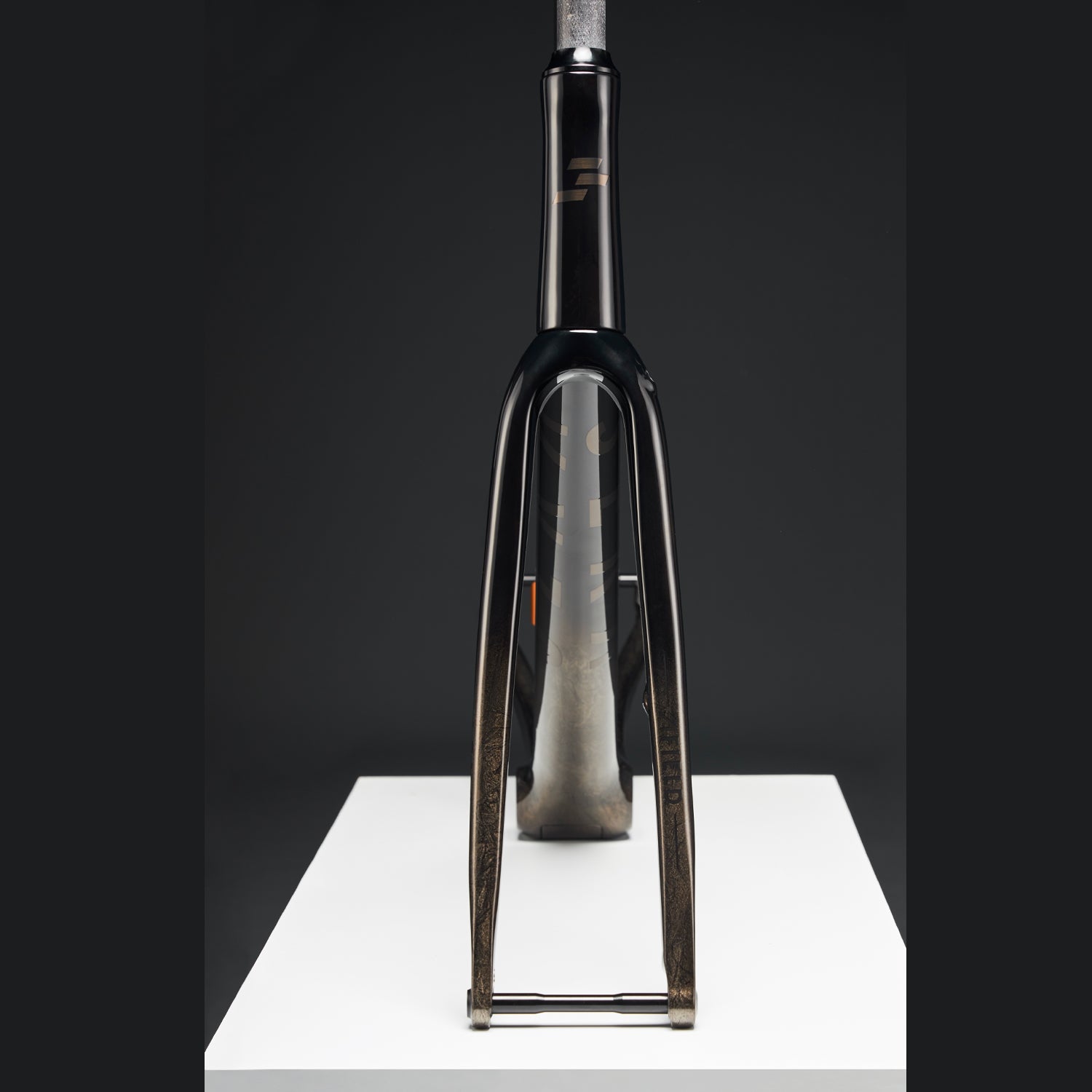

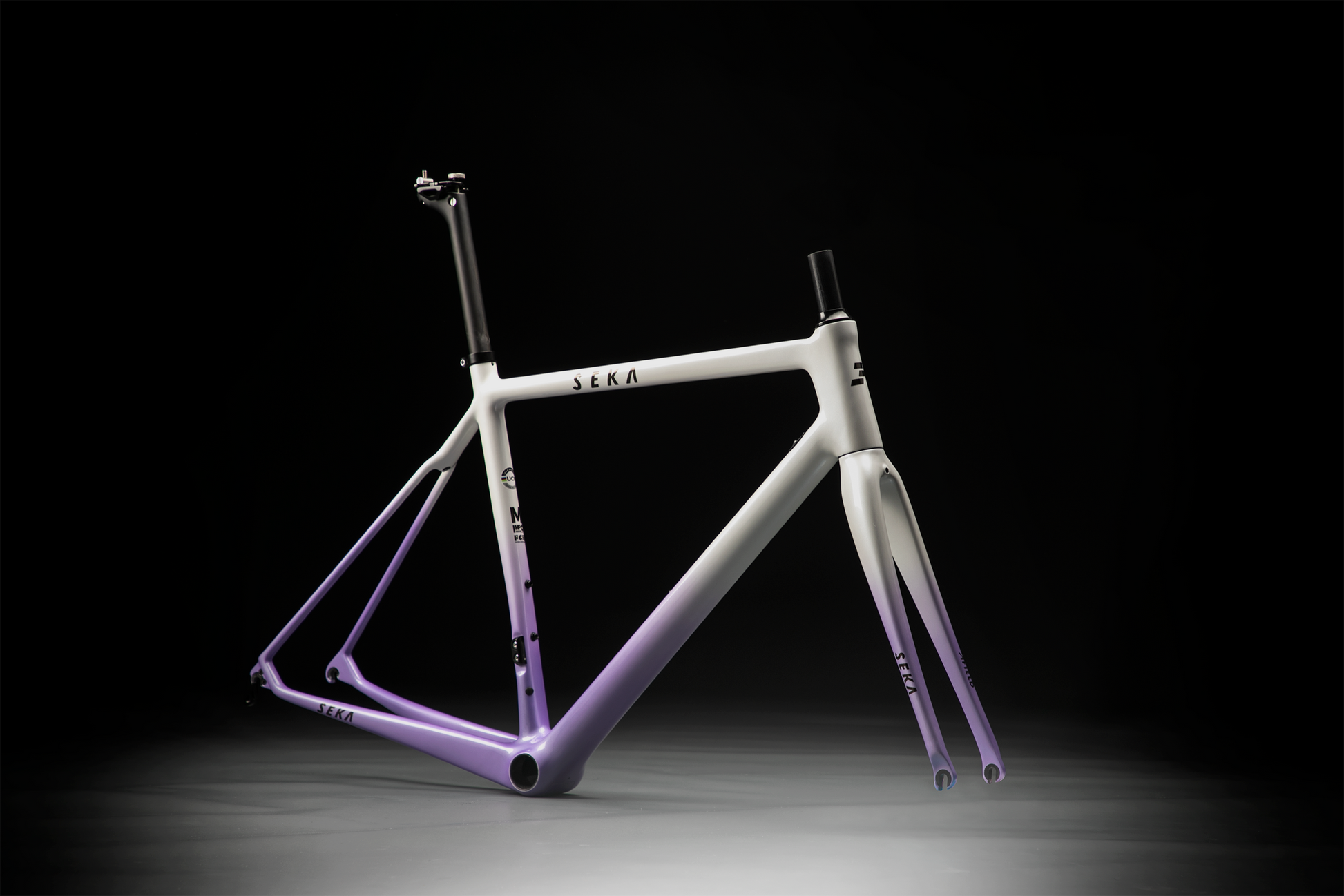

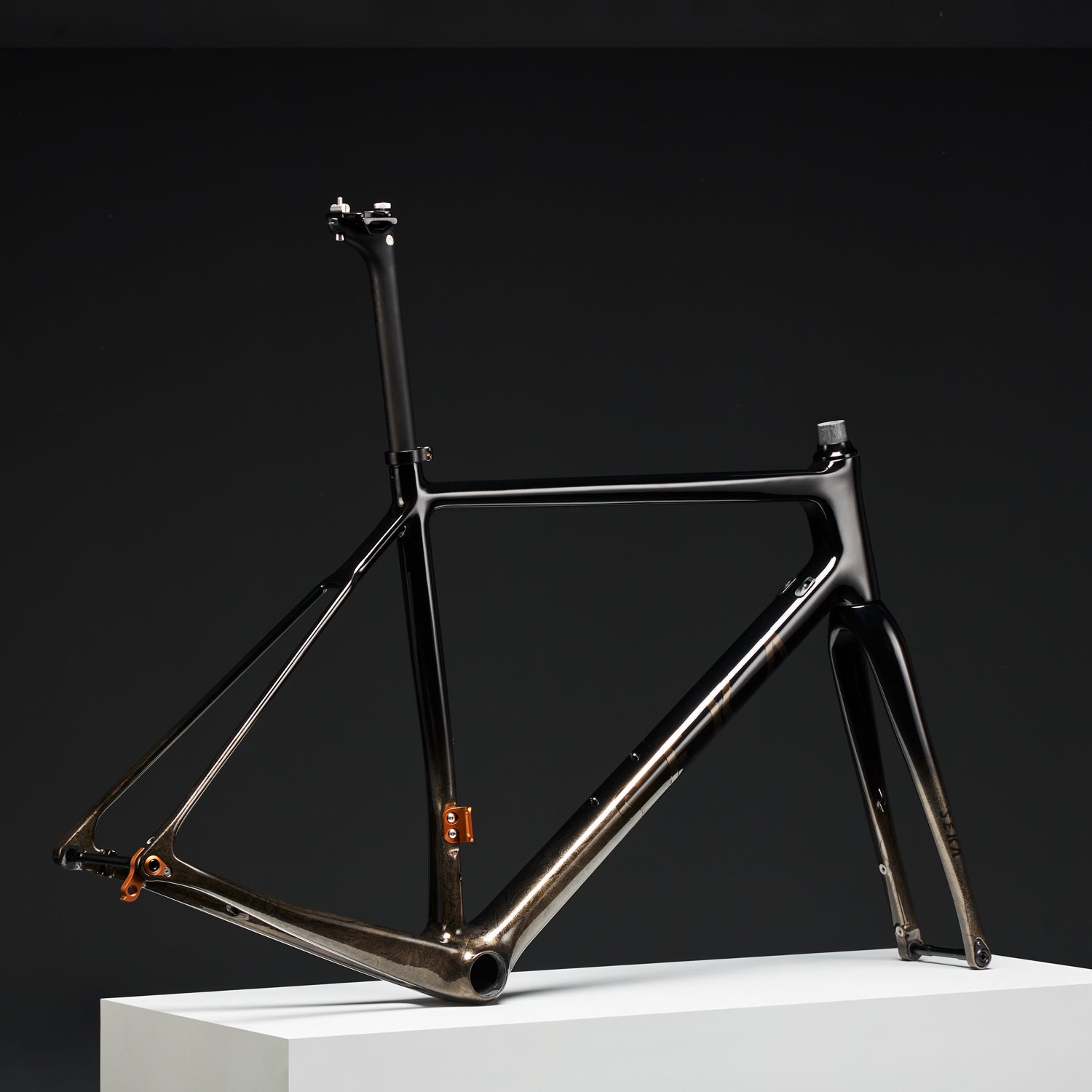

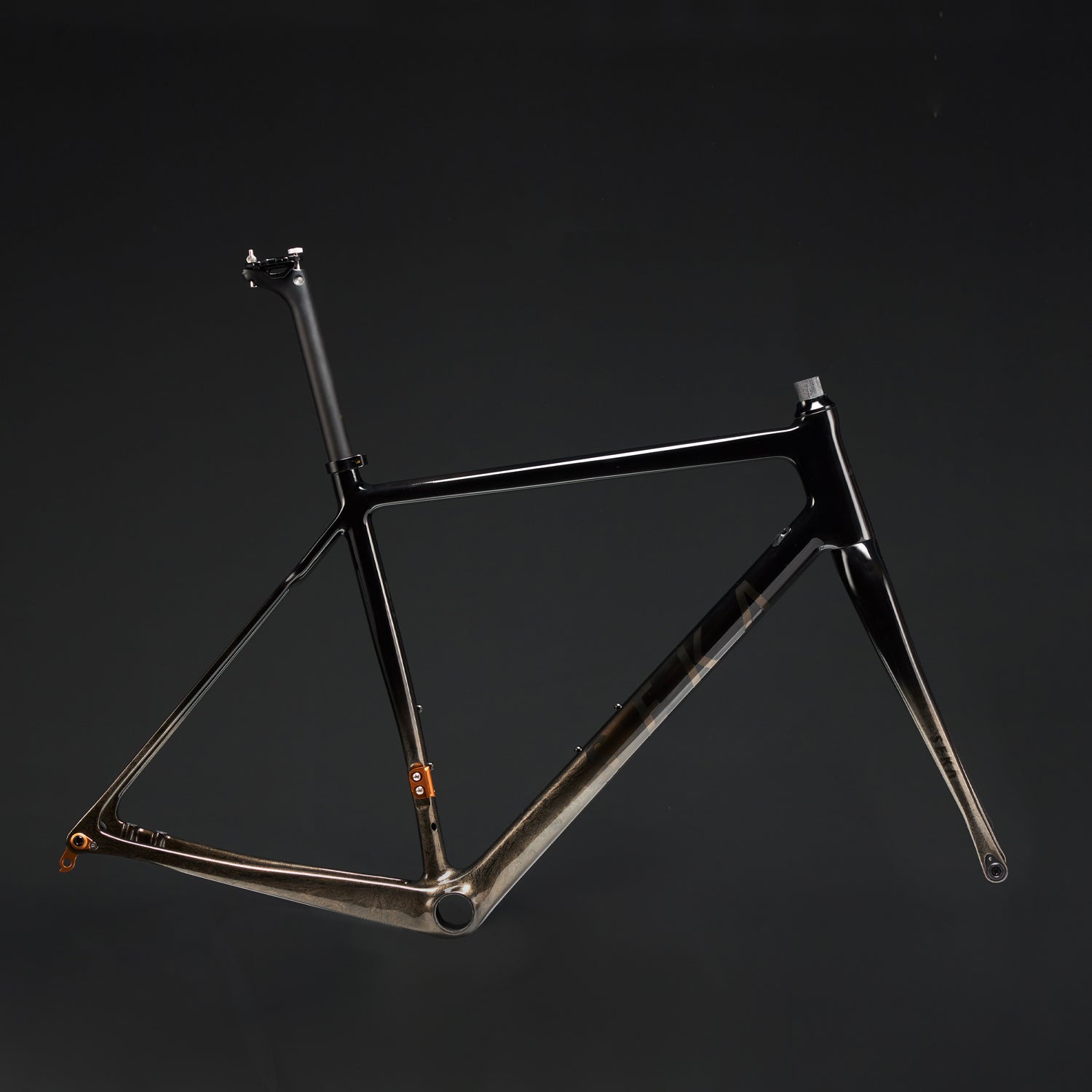

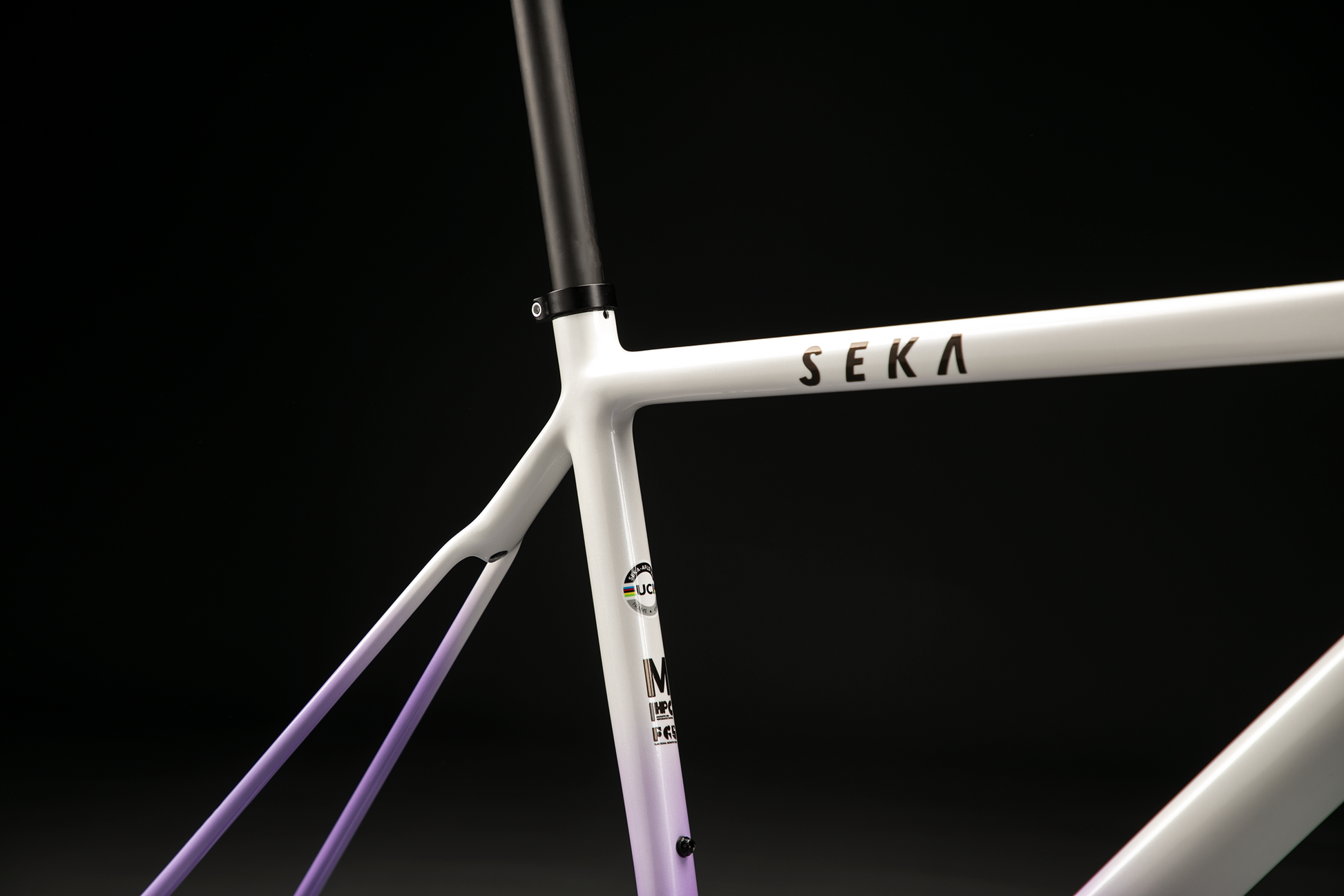

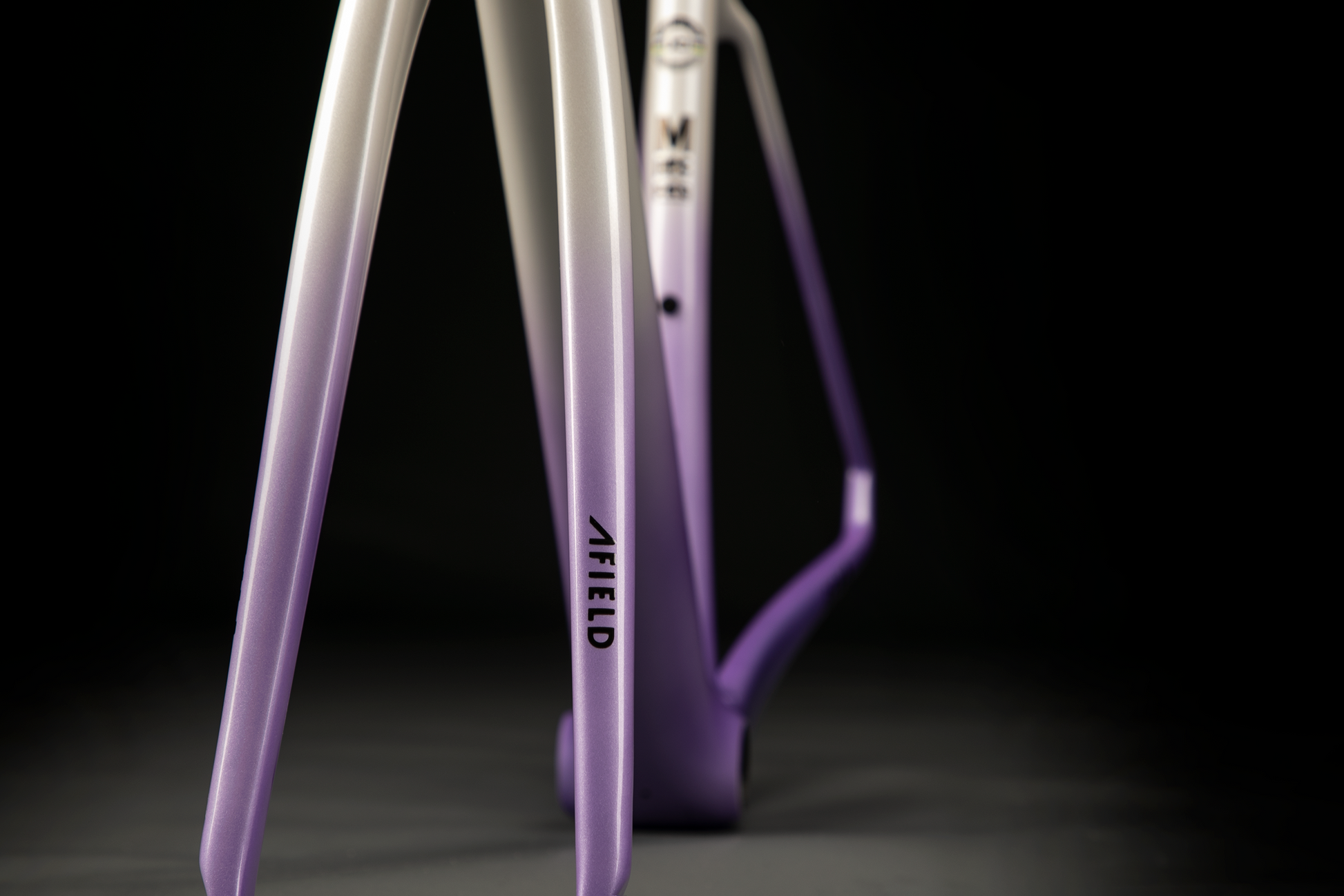

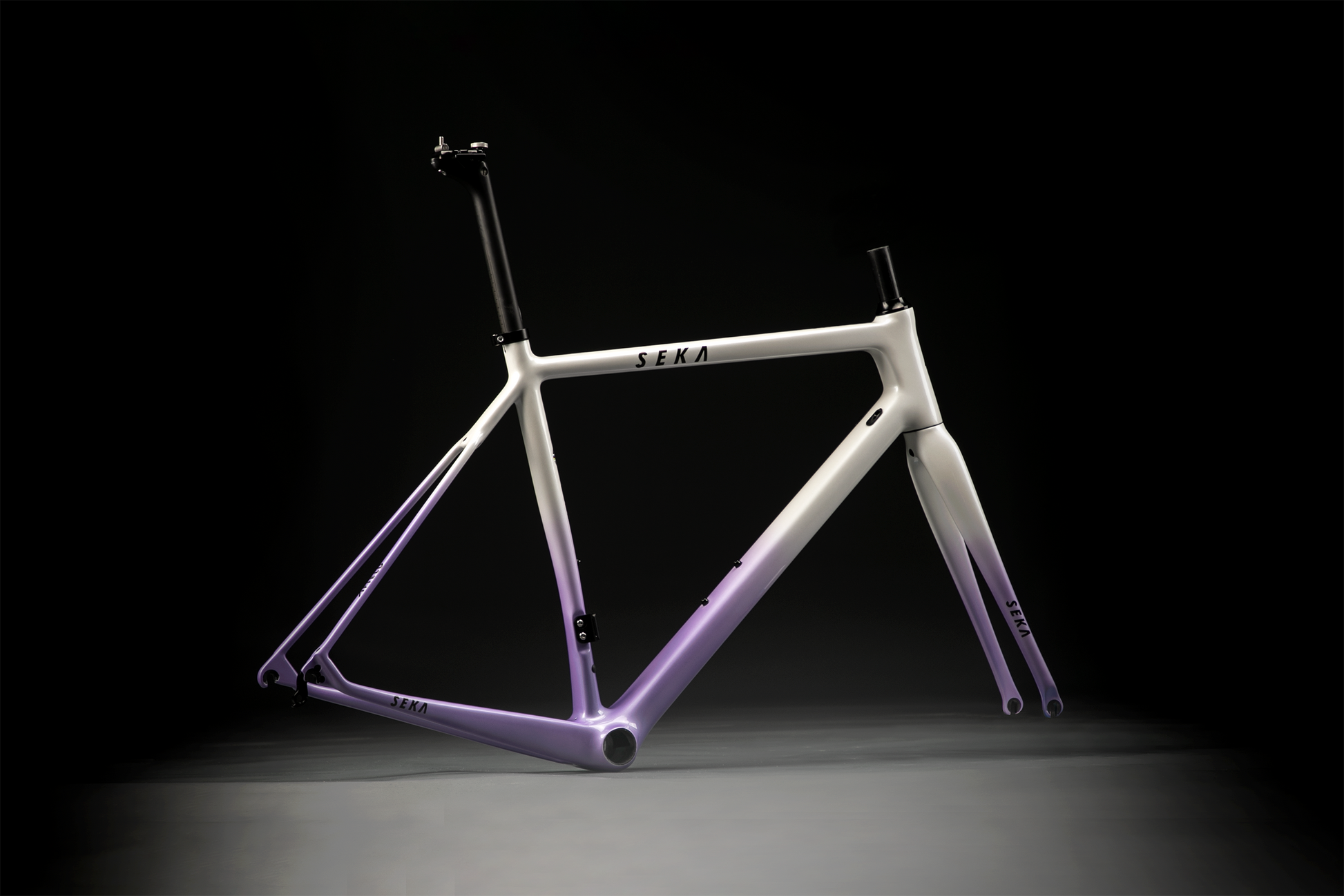

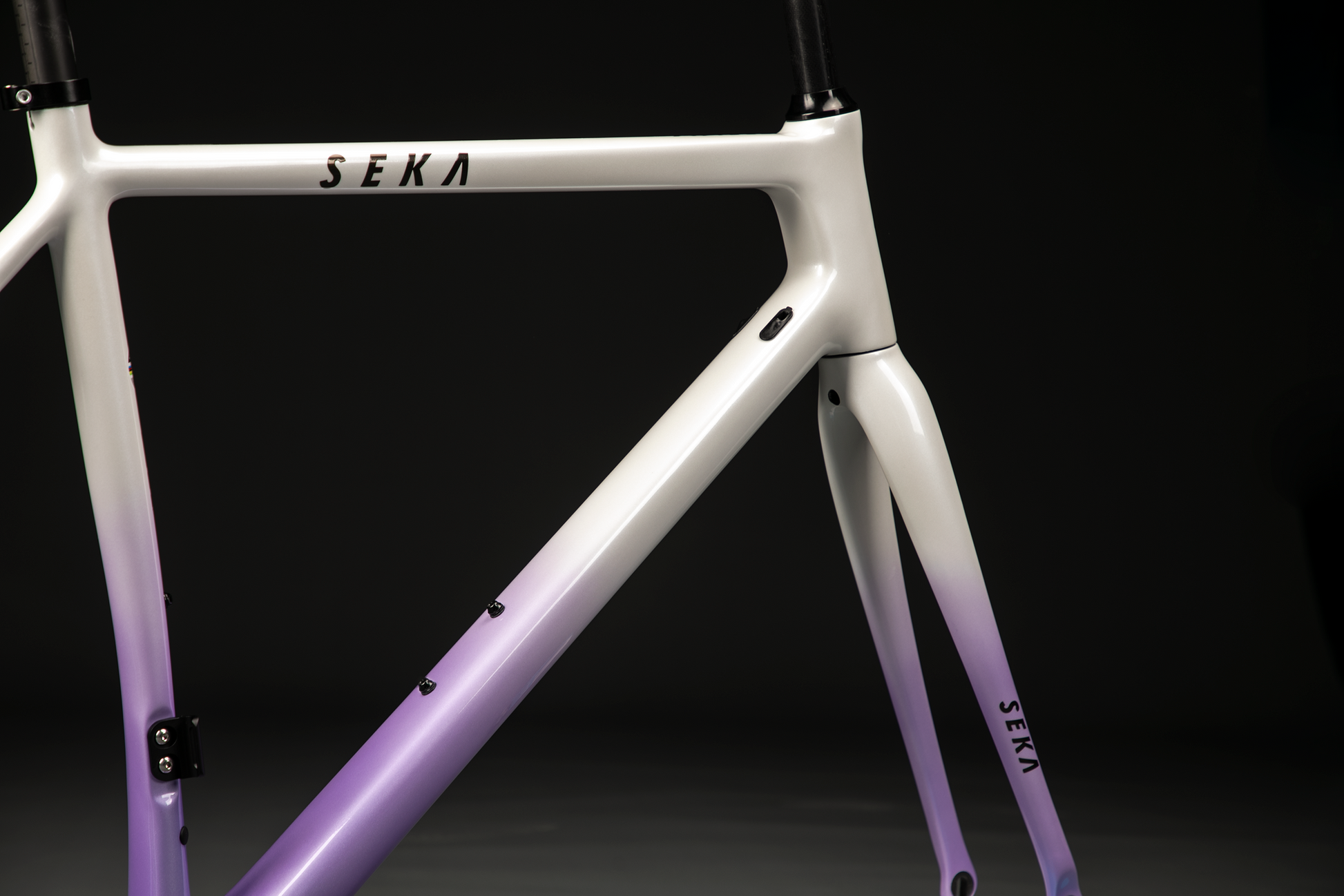

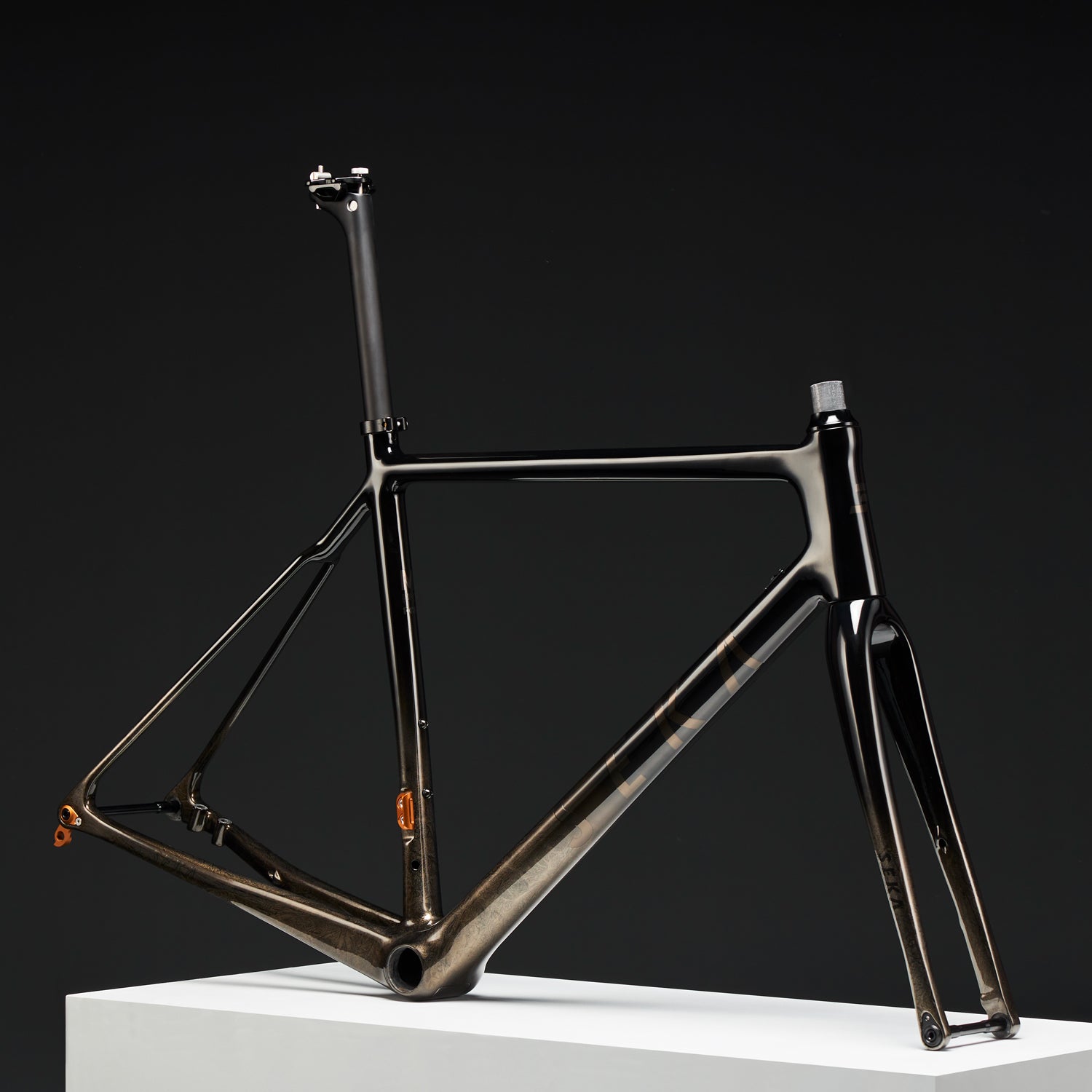

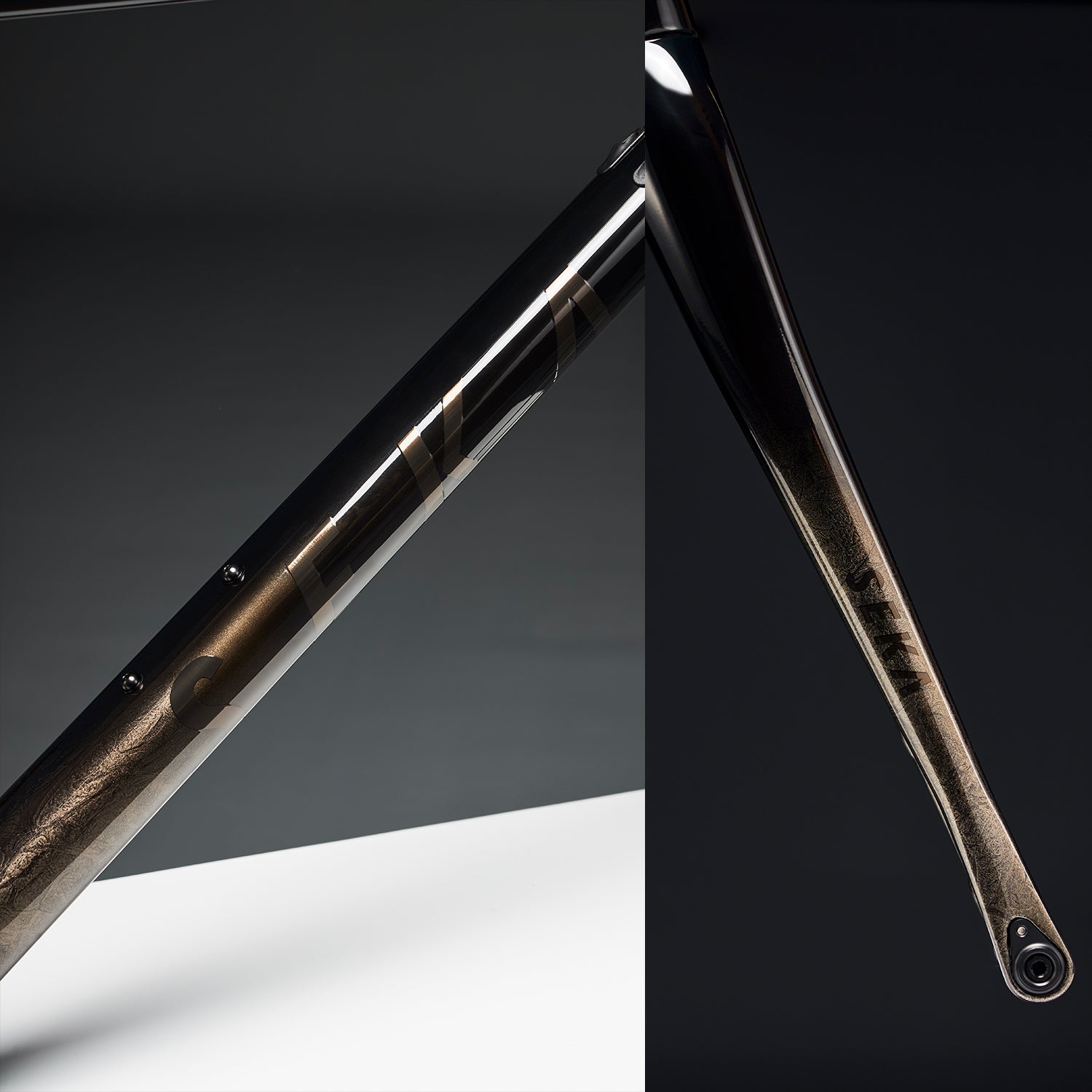

🚲 Two colours: Lilac Dream and Liquid Metallic Black

More Information

The Afield is a powerful, reliable platform that transforms your strength into speed, with riding qualities that are hard to match at its level. The frame is built to be light, responsive and comfortable, while staying efficient over long rides.

It is available in two versions, so you do not have to compromise on how you ride. Choose the rim brake version for a light, classic build, or the disc brake version for modern braking power. Both are designed to keep maintenance simple.

What's Included

✔ Frameset (frame and fork), in the rim or disc version you choose

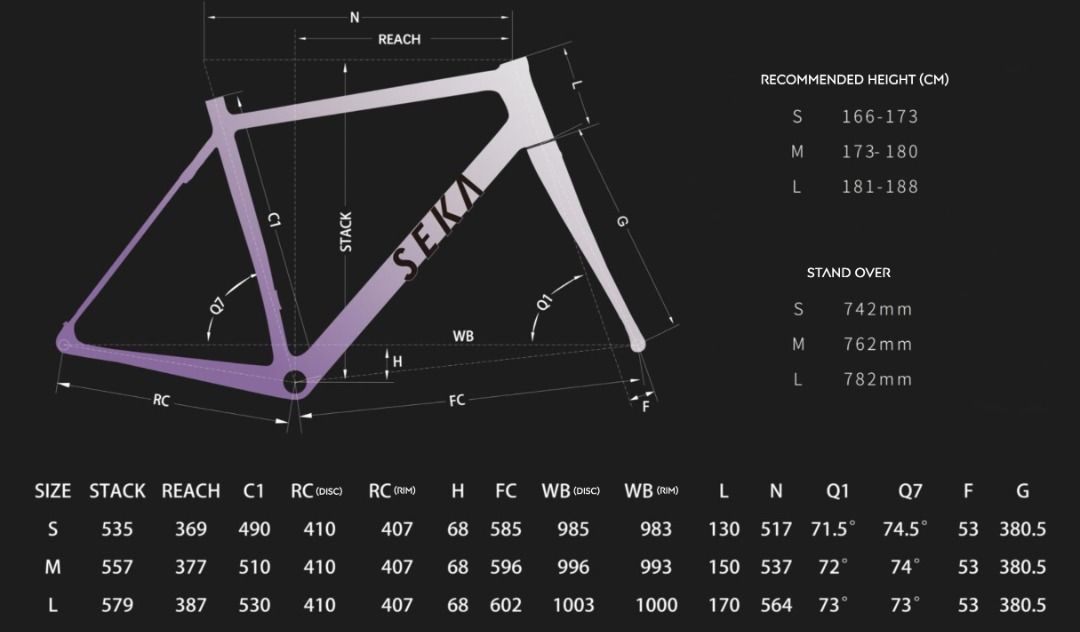

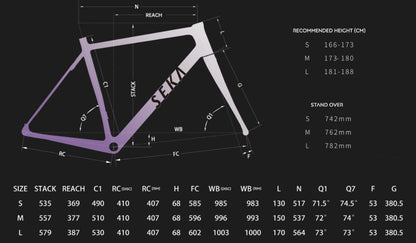

Geometry & Sizes

✔ S – Stack 535 | Reach 369 | Seat tube 490 | Head tube 130 | Top tube 517 | Head angle 71.5° | Seat angle 74.5° | Front centre 585 | Wheelbase 983 (rim) / 985 (disc)

✔ M – Stack 557 | Reach 377 | Seat tube 510 | Head tube 150 | Top tube 537 | Head angle 72° | Seat angle 74° | Front centre 596 | Wheelbase 993 (rim) / 996 (disc)

✔ L – Stack 579 | Reach 387 | Seat tube 530 | Head tube 170 | Top tube 564 | Head angle 73° | Seat angle 73° | Front centre 602 | Wheelbase 1000 (rim) / 1003 (disc)

All sizes: chainstay 407mm (rim) / 410mm (disc), bottom bracket drop 68mm, fork rake 53mm, crown-to-axle 380.5mm. All measurements in mm unless stated. Message us on WhatsApp if you need the XS or XL geometry.

Available Options

✔ Colour – Lilac Dream, Liquid Metallic Black

✔ Style – Rim brake or Disc brake

✔ Size – XS / S / M / L / XL

Specifications

✔ Material: Carbon fibre frame and fork

✔ Brake: Rim or Disc (separate versions)

✔ Sizes: XS / S / M / L / XL

✔ Chainstay Length: 407mm (rim) / 410mm (disc)

✔ Bottom Bracket Drop: 68mm

✔ Fork Rake: 53mm

✔ Crown-to-Axle Length: 380.5mm

Kindly note: stock availability shown online may not be up to date. Please WhatsApp us to confirm before ordering.
