Magene TEO Carbon Crankset

$399.00 SGD

Sale Sold out

Low stock

Crankarm Length 160mm 165mm 170mm 172.5mm 175mm

In stock Pre-order

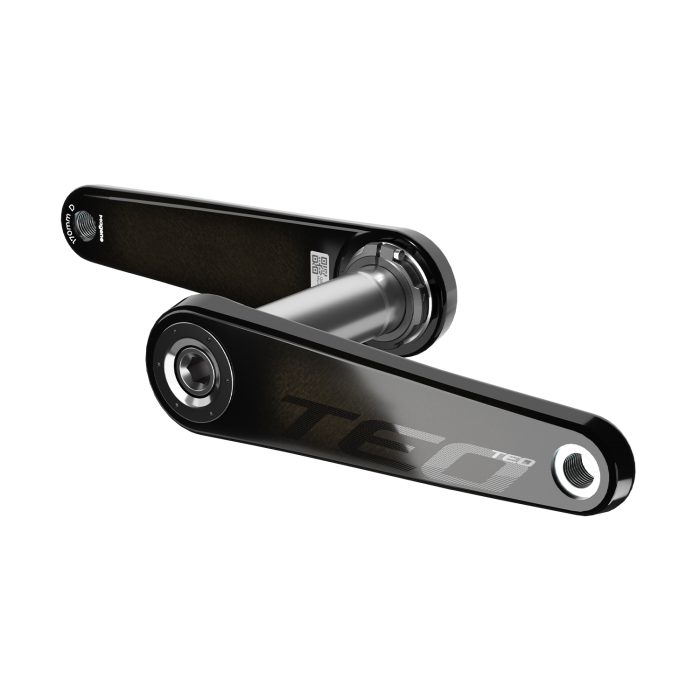

Magene TEO Carbon Crankset

HI-MOD Carbon Crankset – 325 g, 29 mm 7075 Aluminium Spindle

🔥 Race-ready stiffness at a featherweight 325 g 🔥

🚲 325 g (170 mm) HI-MOD carbon crankarms

🚲 Dual-channel high-pressure forming for maximum strength with minimal material

🚲 1500 N compression tested for minimal flex under race loads

🚲 29 mm 7075 aluminium spindle: lighter, stiffer and more water resistant than a 24 mm steel spindle

🚲 Dedicated mounting for Magene P505 / P515 spider-based power meters

🚲 Chainline 44.25 mm, Q-factor 148 mm

Magene TEO carbon crankset

More Information

The TEO Carbon Crank is built for riders who want the highest power transfer with the least weight. It is made from HI-MOD carbon fibre using Magene's dual-channel high-pressure process, which keeps the crank at just 325 g (170 mm, lab tested) while giving a sharp, responsive feel in sprints, climbs and hard surges.

In Magene's lab test, a 1500 N compression force applied at the 35 mm pedal position produced minimal displacement, showing high pedal-stroke stiffness. The 29 mm aircraft-grade 7075 aluminium spindle adds stiffness while saving weight, and offers better water resistance and long-term drivetrain efficiency than traditional 24 mm steel spindles.

The crank is designed to work with Magene spider-based power meters. Fit a P515 and you have the TEO P515 power meter crankset, or add a QED split chainring for a complete lightweight drivetrain.

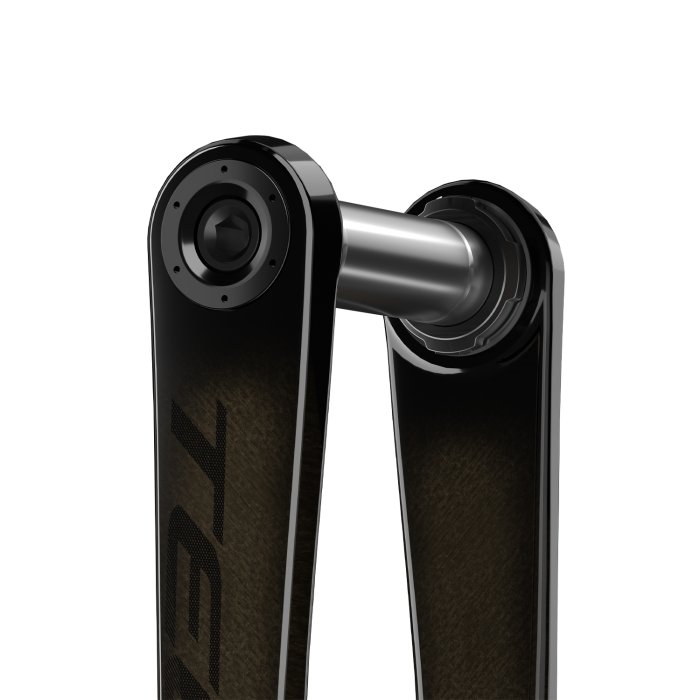

Magene TEO carbon crank detail

Compatibility

The TEO crank uses a dedicated mount that only accepts Magene spider-type power meters, such as the P505 and P515. The cranks are supplied without a power meter or chainrings; add them via the bundle options below. Not sure about your build? WhatsApp us before ordering.
