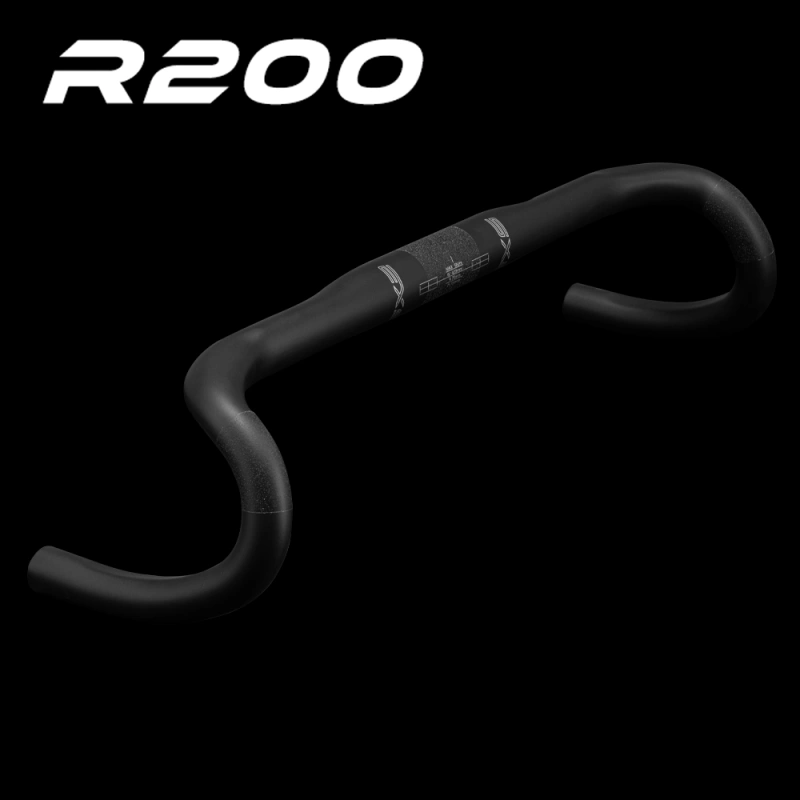

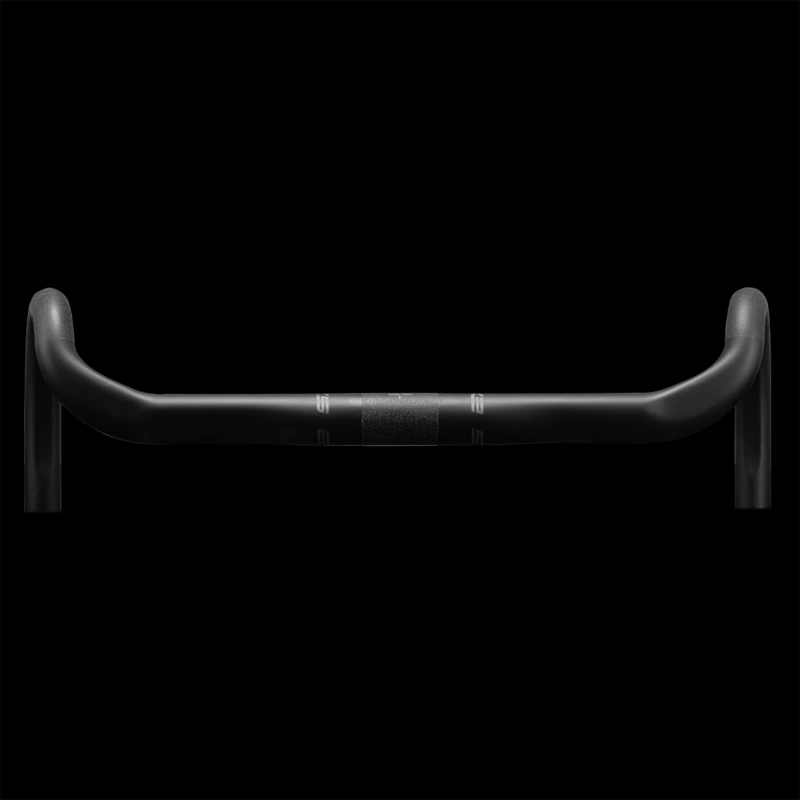

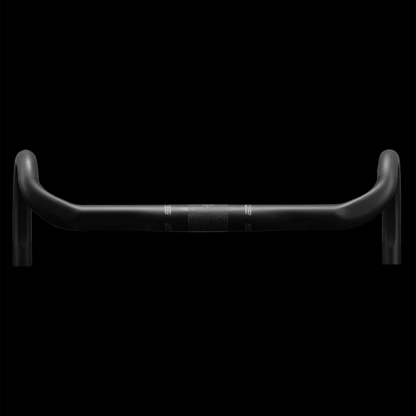

EXS R200 Road/Gravel Handlebar

EXS R200 Road/Gravel Handlebar

A light carbon road bar with compact drop and flared drops – built for gravel, endurance and all-road riding

🔥 Gravel-rated with 70 J impact strength 🔥

🚲 Weight 200 g ±5% (40 cm)

🚲 Compact 100 mm drop and 70 mm reach for relaxed, endurance-friendly geometry

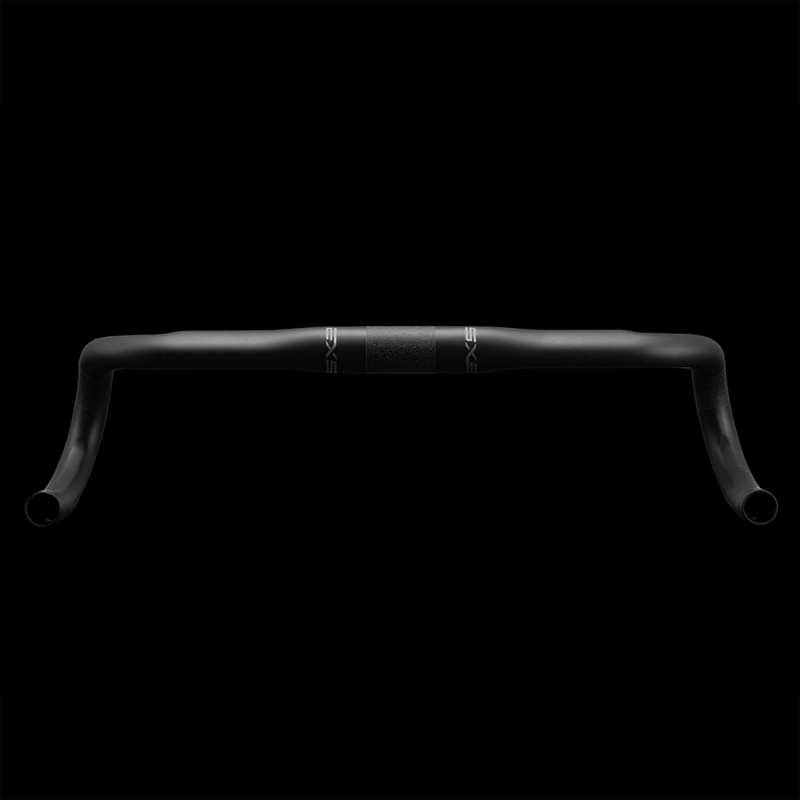

🚲 +40 mm flare in the drops for better off-road stability and easier lever reach

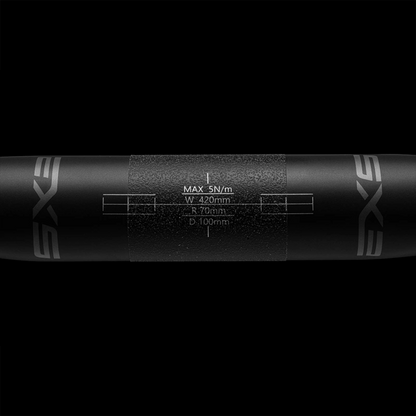

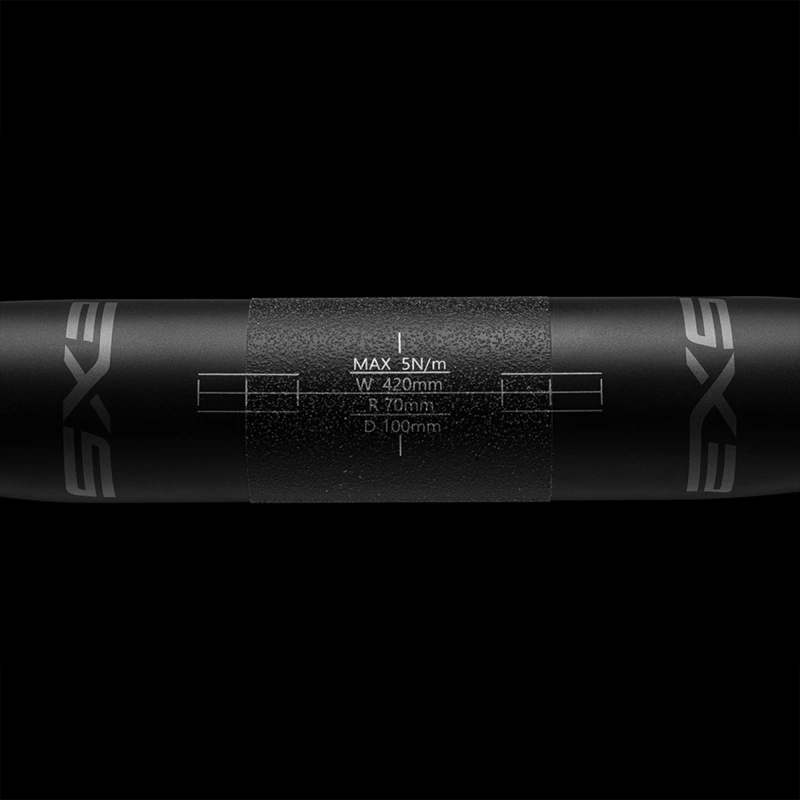

🚲 Wide 100 mm central clamp area for lights, GPS mounts or aero extensions

🚲 70 J impact strength – meets Shimano's gravel bar test standard

🚲 Palm support and anti-numbness shaping on the tops

🚲 Compatible with internal routing, 110 kg rider limit (ISO 4210)

More Information

The R200 takes the ergonomic design of the EXS R-series and adapts it for mixed-surface riding. It blends the speed of a road bar with the control and stability needed for gravel, Roubaix-style racing and all-day endurance rides.

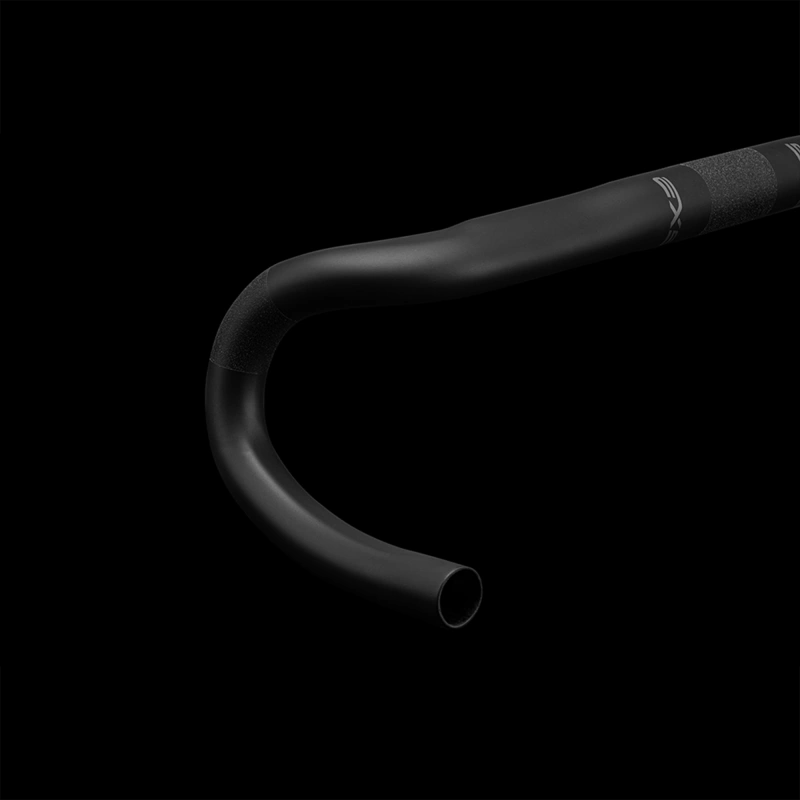

The compact 100 mm drop keeps your posture relaxed and upright, ideal for long climbs and technical descents. The flare in the drops adds stability on uneven terrain and makes the levers easier to reach, while the restrained forward sweep keeps brake lever alignment natural in the drops.

All-Terrain Utility

The 100 mm wide centre clamp zone supports aero bar extensions, GPS mounts and lights. With 70 J impact strength, the R200 meets Shimano's gravel impact standard, which is stricter than the usual road handlebar tests – ideal for gravel, endurance, all-road and lightweight adventure builds.

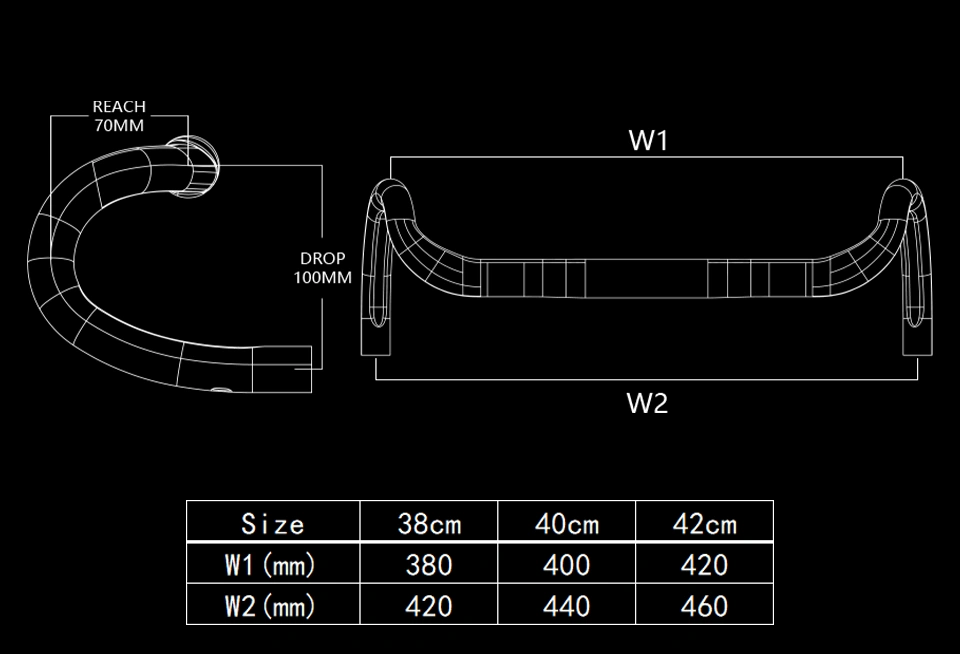

Specifications

✔ Weight: 200 g ±5% (40 cm)

✔ Material: Carbon fibre

✔ Widths: 38 / 40 / 42 cm

✔ Reach: 70 mm

✔ Drop: 100 mm

✔ Flare: +40 mm (drop width vs top width)

✔ Centre Clamp Area: 100 mm

✔ Cable Routing: Compatible with internal routing

✔ Rider Weight Limit: 110 kg (ISO 4210)

✔ Impact Test: 70 J (Shimano gravel standard)

✔ Warranty: 2 years (EXS)
