EXS R175 Road Handlebar

EXS R175 Road Handlebar

Lightweight aero road handlebar – 180 g with an aerodynamically optimised shape and full internal routing

🔥 3–4 W saved at 45 km/h versus round-tube bars 🔥

🚲 Weight 180 g ±5% (40 cm)

🚲 Aero shape tuned by CFD: 3–4 W saving at 45 km/h compared with round bars

🚲 Reach 70 mm, drop 125 mm – responsive, race-ready geometry

🚲 Higher-modulus carbon layup on the proven R180 platform

🚲 Stiffer drops for sprinting, more compliant tops for comfort

🚲 Internal and semi-internal routing compatible

🚲 110 kg rider limit (ISO 4210)

More Information

The R175 builds on the popular R180, adding an aerodynamically optimised cross-section while holding its class-leading weight. EXS used a higher-modulus carbon fibre for a stronger layup with no weight penalty, and added support for full internal cable routing.

Shaped through CFD, the R175 saves 3–4 W at 45 km/h over standard round-tube bars. The ergonomic top gives a natural wrist position on long rides and climbs, while the drop section is reinforced for sprint stiffness and handling confidence. The top is tuned to flex and absorb vibration, a balance refined over years of R-series development.

Multiple widths are available. WhatsApp us for sizing and availability.

Specifications

✔ Weight: 180 g ±5% (40 cm)

✔ Material: Higher-modulus carbon fibre

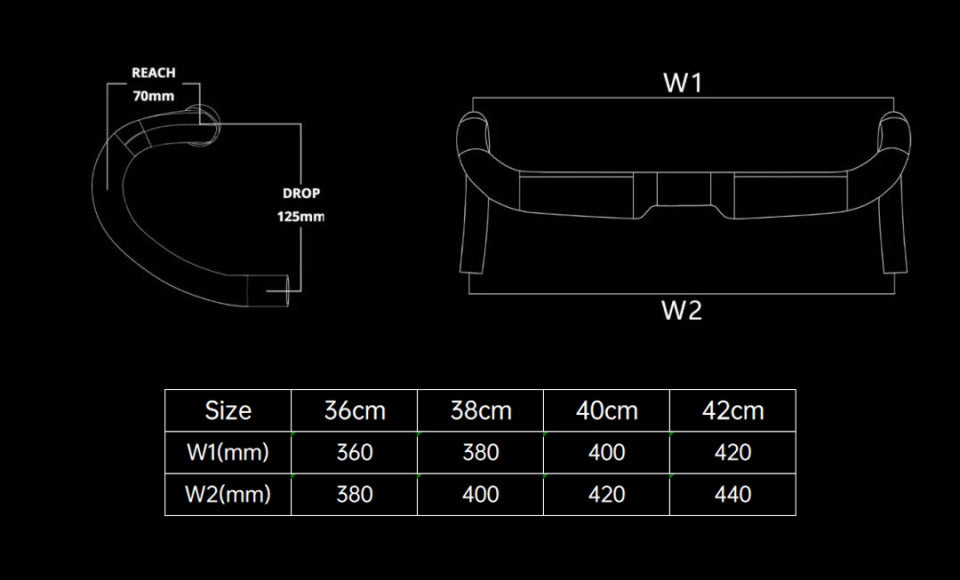

✔ Widths: 36 / 38 / 40 / 42 cm (contact us for sizing and availability)

✔ Reach: 70 mm

✔ Drop: 125 mm

✔ Cable Routing: Internal and semi-internal

✔ Rider Weight Limit: 110 kg (ISO 4210)

✔ Compatibility: Not compatible with Zipp or Bontrager stems

✔ Warranty: 2 years (EXS)

Kindly note: stock availability shown online may not be up to date. Please WhatsApp us to confirm before ordering.
