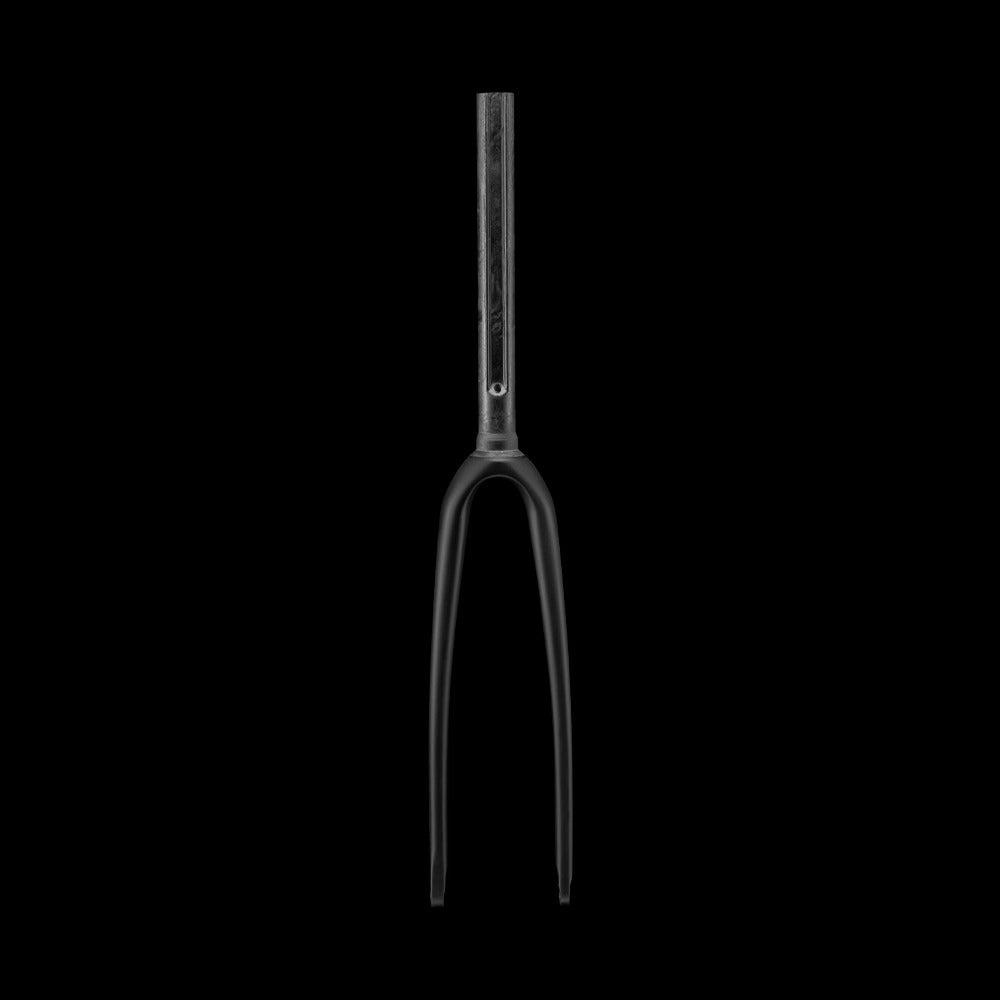

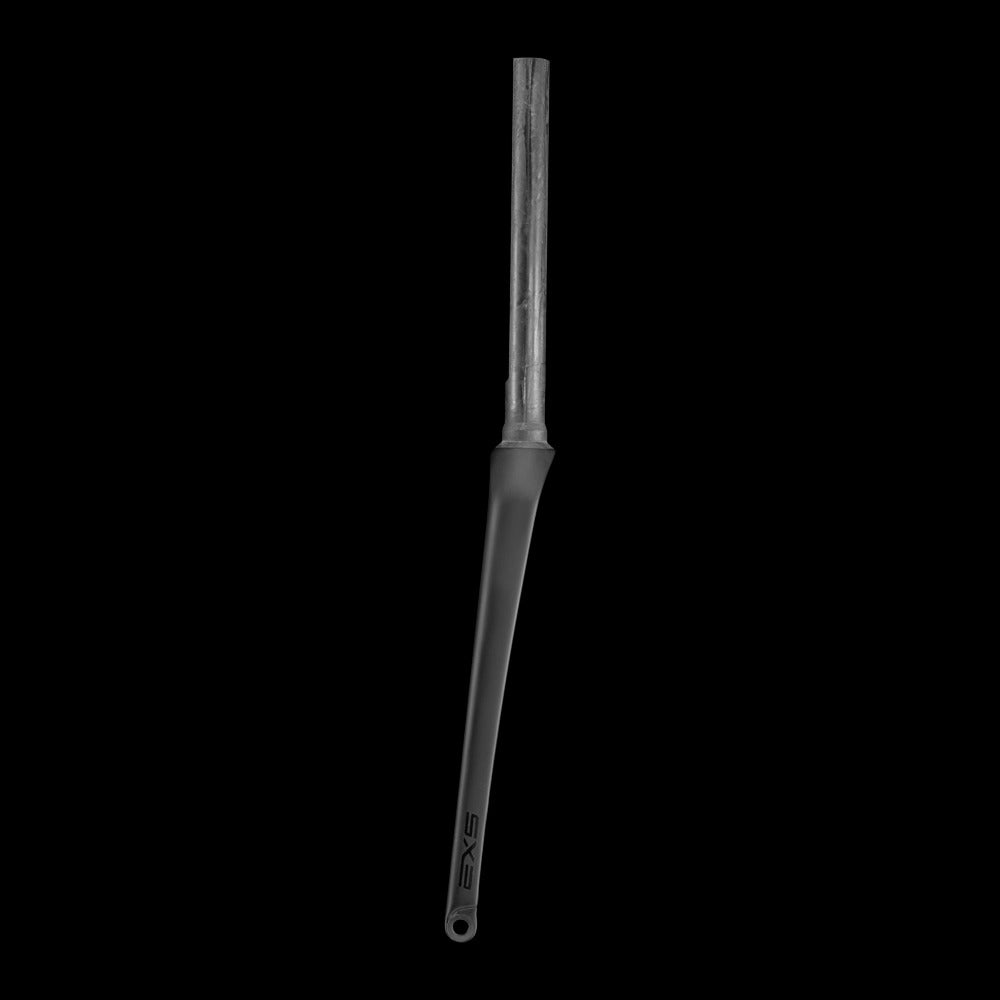

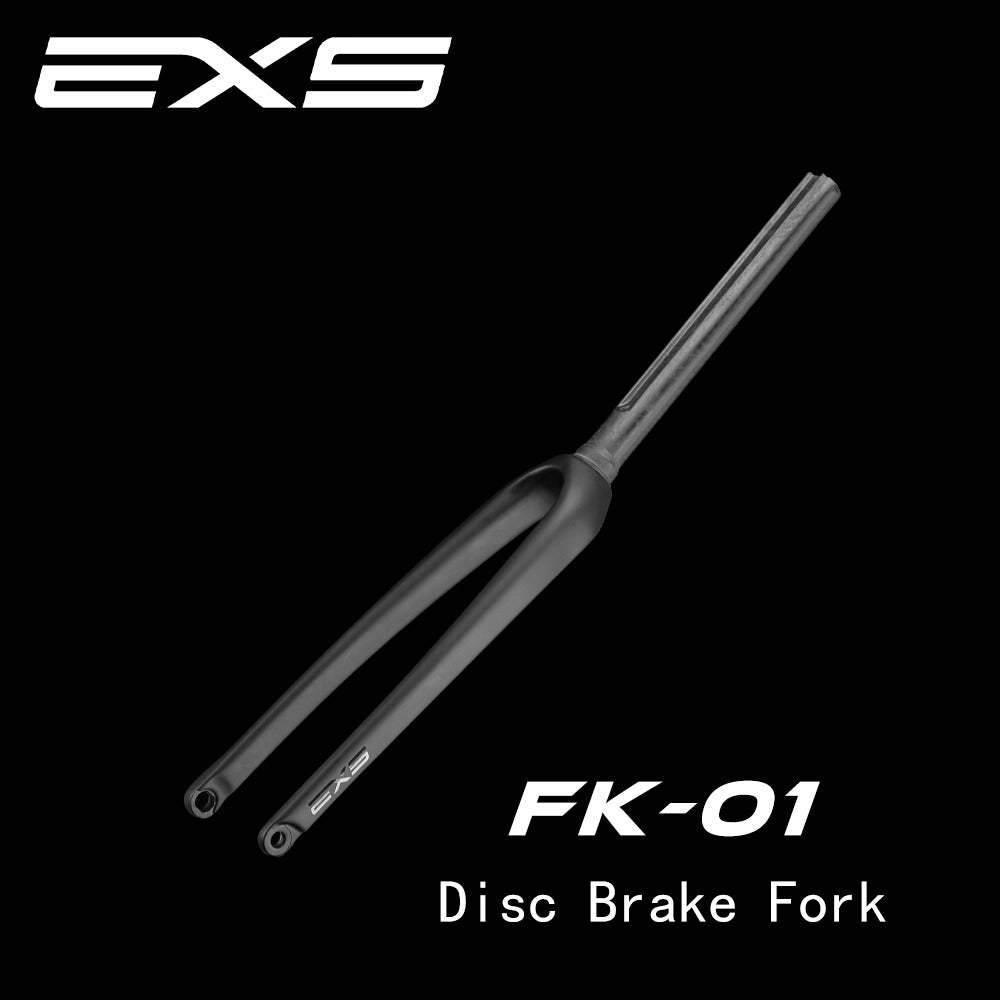

EXS FK-01 Integrated Fork

EXS FK-01 Integrated Fork

Carbon Road Fork with a 31.8mm D-Shape Steerer for Frames with Partial Internal Cable Routing

🔥 Full-size stiffness for frames that are only partly internally routed 🔥

🚲 Steerer: 31.8mm D-shape, carbon one-piece moulding

🚲 Weight: 370g ±5% (normal length)

🚲 Rake 45mm, fork length 370mm

🚲 Max tyre size: 32mm, flat mount brake

🚲 Axle: 12 × 100mm thru-axle (axle not included)

🚲 Steerer length: 260mm or 300mm

More Information

Full internal routing is becoming the standard, but many frames are only partly internally routed. A standard 28.6mm steerer with a large headset fits but can look bulky on metal frames, while a 28.6mm D-shape steerer with a small headset looks cleaner but gives up stiffness.

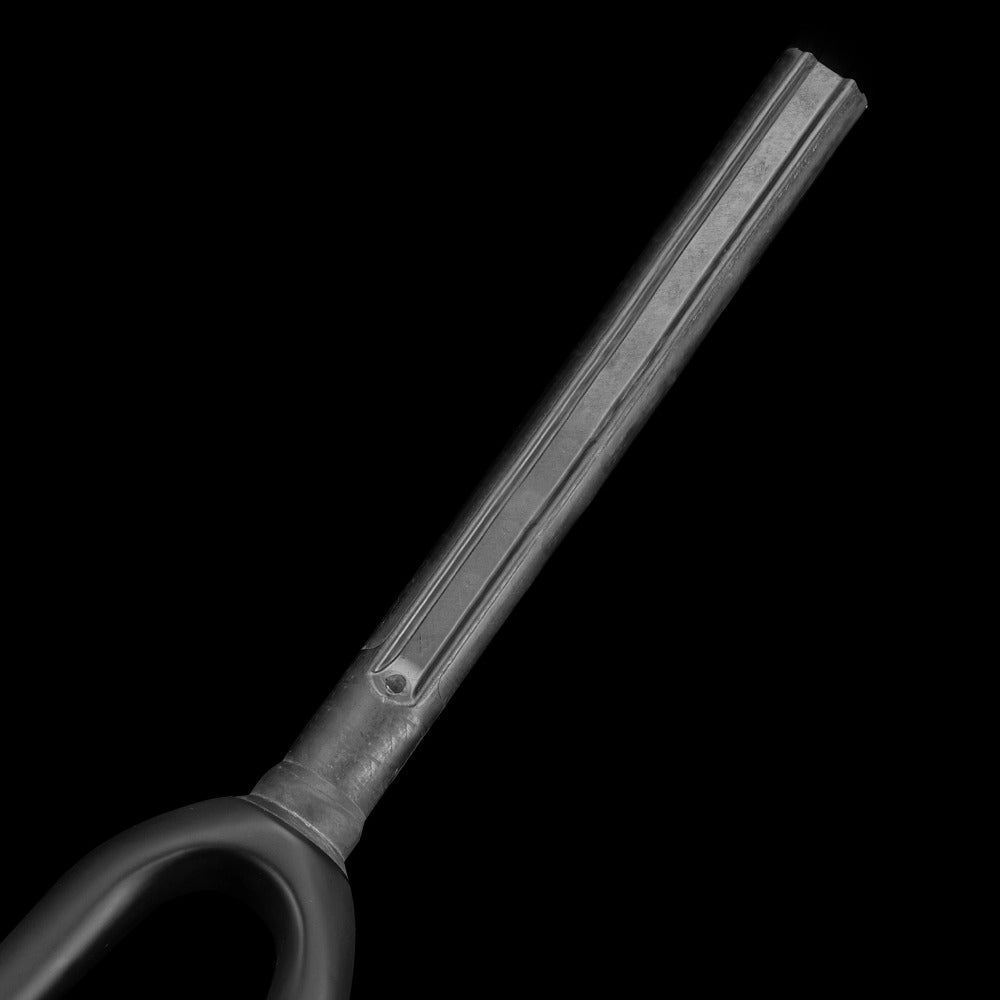

The FK-01 takes a different approach: a 31.8mm D-shape steerer made with carbon one-piece moulding and reinforcement. It gains strength and stiffness without extra carbon layers, so weight stays down. Paired with a small headset and a compression plug, it can use a standard, non-offset top cap for a cleaner front end.

The layup is tuned for steering precision, braking control and impact stability while keeping the ride comfortable, and the fork complies with ISO 4210 and holds an SGS certificate.

Compatibility

The FK-01 is intended for electronic groupsets only and is made for frames with partial internal cable routing, such as the Giant TCR. Please check your frame's dimensions and headset size, and WhatsApp us before ordering so we can confirm the fit and the steerer length (260mm Normal or 300mm XL).

Specifications

✔ Steerer: 31.8mm, D-shape

✔ Steerer length: 260mm, 300mm

✔ Rake: 45mm

✔ Fork length: 370mm

✔ Brake mount: Flat mount

✔ Weight: 370g ±5% (normal length)

✔ Max tyre size: 32mm

✔ Axle: 12 × 100mm thru-axle (not included)

✔ Groupset: Electronic groupsets only

✔ Certification: ISO 4210, SGS

Kindly note: stock availability shown online may not be up to date. Please WhatsApp us to confirm before ordering.
