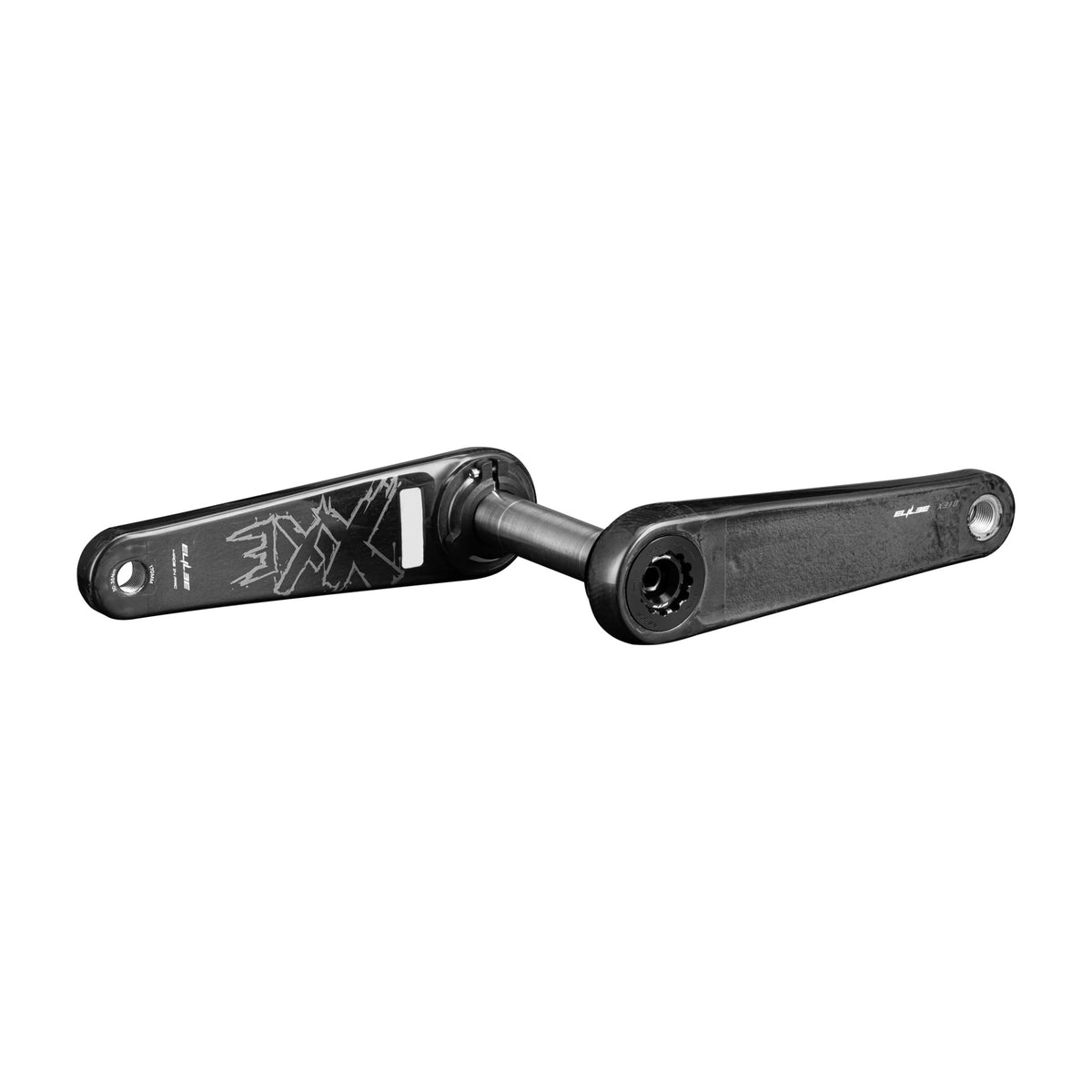

Elilee X310 Carbon Crankarm | 24mm Titanium Spindle

Elilee X310 Carbon Crankarm

310 g carbon crank arms with a 24 mm titanium spindle and the Elilee 13T spider interface

🔥 A stiff titanium spindle on a featherweight carbon crank 🔥

🚲 Crank weight: 310 g

🚲 Spindle: 24 mm titanium, 94 mm long

🚲 Q-factor 151.5 mm, chainline 44.5 mm

🚲 Lengths: 145 – 172.5 mm (8 sizes, including short cranks for smaller riders)

🚲 Elilee 13T spider interface, ready for spider power meters

🚲 Fatigue tested to ISO 4210:2015 (1800 N, 45°, 100,000 cycles)

More Information

The X310 is Elilee's carbon road crank, with a claimed crank weight of 310 g. This version uses a 24 mm titanium spindle that keeps the system light and stiff and suits 24 mm (Shimano-style) bottom brackets.

Pair it with an Elilee spider and your choice of 110 BCD chainrings, or fit a spider-based power meter such as the Elilee EK-01 or the XCadey XPower-S to train with real data.

It is offered in Normal and Team Edition versions. WhatsApp us if you would like details on the difference.

Compatibility

✔ Bottom bracket – 24 mm spindle, for 24 mm (Shimano-style) bottom brackets

✔ Spider / chainrings – Elilee 13T interface. Sold as crank arms with spindle; the spider, chainrings and bolts are separate. See our Elilee Carbon Crank Spider and Elilee EK-01 Power Meter.

Available Options

✔ Crank length – 145 / 150 / 155 / 160 / 165 / 167.5 / 170 / 172.5 mm

✔ Model – Normal or Team Edition

Specifications

✔ Weight: 310 g (crank)

✔ Material: Carbon fibre arms, titanium spindle

✔ Spindle: 24 mm titanium, 94 mm long

✔ Crank Lengths: 145 / 150 / 155 / 160 / 165 / 167.5 / 170 / 172.5 mm

✔ Q-Factor: 151.5 mm

✔ Chainline: 44.5 mm

✔ Spider Interface: Elilee 13T

✔ Testing: ISO 4210:2015 fatigue test, 1800 N, 45°, 100,000 cycles

✔ Includes: Crank arms and spindle

Kindly note: stock availability shown online may not be up to date. Please WhatsApp us to confirm before ordering.
